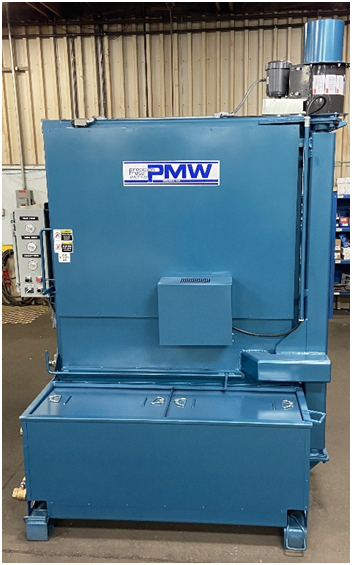

The model 812 is ideal for commercial rebuilders, industrial applications, and large shops.
The many options available allow the user to custom design the 812 to meet all applications.
The door mounted turntable design is built to provide complete accessibility.
Labyrinth door design eliminates the need for expensive replacement seals.
Standard Features
Optional Features
| 812A | 812B | 812C | 812D | 812E | 812G | |
|---|---|---|---|---|---|---|
| Height | 102” | 108” | 108” | 108” | 108” | 108” |
| Width | 76” | 80” | 88” | 96” | 110” | 120” |
| Depth | 66” | 70” | 78” | 84” | 96” | 108” |
| Turntable Diameter | 36” | 40” | 48” | 54” | 60” | 72” |
| Working Height | 54” | 60” | 60” | 60” | 60” | 60” |
| Working Load Limit Pounds | 1500 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Solution Capacity Gallons | 225 | 240 | 330 | 400 | 500 | 725 |
| Standard Pump Motor Size HP | 15 | 15 | 15 | 15 | 20 | 20 |
| Standard Pump gpm | 190 | 200 | 210 | 225 | 270 | 300 |
| Standard Pump psi | 65 | 65 | 65 | 65 | 65 | 65 |
| Wash Nozzles | 26 | 26 | 30 | 32 | 36 | 40 |
| Turntable Drive | 1/2HP | 1/2HP | 1/2HP | 1/2HP | 1/2HP | 1/2HP |
| Electric Heating Element(s) | 18 KW | 18 KW | 18 KW | 36 KW | 36 KW | 54 KW |
| Power Requirement (3 phase) | 230v. 82amp | 230v. 82amp | 230v. 82amp | 450v. 70amp | 460v. 70amp | 460v. 90amp |
| Fresh Water Inlet Size | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT |
| Main Tank Drain Size | 2” NPT | 2” NPT | 2” NPT | 2” NPT | 2” NPT | 2” NPT |
| Weight in Pounds | 3500 | 4500 | 5500 | 6000 | 6500 | 7500 |
Model 812 Options | Part # |
|---|---|
| 20 HP-230 V-3 Phase | 812-11 |
| 15 HP-230/460 V 3 Phase | 812-13 |
| 15 HP-575 V 3 Phase | 812-14 |
| 20 HP-460 V 3 Phase | 812-15 / Standard on 812E & 812G |
| 20 HP-575 V 3 Phaser | 812-16 |
| Pump Upgrade to 25 HP | 812-17 |
| 230 V 3 Phase Power | Standard / 812-18 on 812E & 812G |
| 460 V 3 Phase Power | Standard on 812E & 812G |
| Auto Refill with Low Water Shut Off | 812-21 |
| Oil Skimmer w/ 60 Min Timer | 812-23 |
| Oil Skimmer w/ 7-day Timer | 812-24 |
Model 812 Options | Part # |
|---|---|
15” Small Parts Basket | 812-25 |
| Stainless Steel Wash Nozzles | Standard |
| Intermediate or Mid Height Spray Bar | 812-26 |
| Large Adjustable Head Rack | 812-30 |
| Double Deck Table w/Spray Bar | 812-31 |
| Transmission Rack | 812-32 |
| Gas Heat | 812-33 |
| Low Water Auto Shut-off | 812-38 |
| #8 x 30 Bag Filter System for 15 & 20 hp | 812-42 |
| Shop Air Blow Off Cycle | 812-45 |
| Exhaust Blower | 812-47 |
| HD 12’ SS Oil Skimmer w/ 60 Min Timer | 812-48 |
| HD 20’ SS Oil Skimmer w/ 60 Min Timer | 812-49 |
Model 812 Options | Part # |
|---|---|
| Digital Timers All Cycles | 812-51 |
| DEMA Injector Valve Water Line | 812-54 |
| Recirculating 2nd Stage w/3HP Pump, Heat & Auto Divert | 812-56 |
| Recirculating 2nd Stage w/5HP Pump, Heat & Auto Divert | 812-57 |
| Increased Work Height Each 6” up to 144” Max | 812-60 |
| Auto Indexing Turntable | 812-65 |
| Turntable Jog Button | Standard |
| Pressure Control Valve w/ Gauge | 812-68 |
| Fresh Water Rinse w / Auto Divert | 812-69 |
| Low Pressure Steam Heating | 812-80 |
| Additional 18 kw Heater | 812-85 |
| Extra 24” Basket | 1160 |
Heavy Duty Construction
Precision Metal Works parts washers are among the heaviest washers available. All structural members are at least 1/4-inch steel. No case/cabinet material is less than 12-gauge steel. Compare the weight of our machine to others on the market. Heavy + Strong + Durable = Robust. Each machine comes with one basket.
