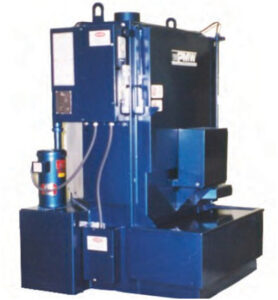

The model 113 is the perfect Power Spray Washer for the small shop as well as an inexpensive additional washer for the larger shop’s overflow work or to isolate aluminum cleaning.
The 113 rugged, heavy duty welded construction assures years of trouble-free service and includes key features resulting in the performance benefits.
The model 113 utilizes a hot water-soluble cleaning agent.
Labyrinth Door Design: Eliminates the need for expensive replacement seals.
32” Work Height: Will accept any automotive block, cylinder head or transmission body in today’s market.
Door Mounted Turntable: Provides easy access for loading or unloading.
Nine Large Steel Jets: To assure quick, thorough cleaning.
Fully Insulated Cleaning Chamber: For inexpensive operation.
500 lb. Capacity: Withstands multi-loading heads, blocks, transmissions, or parts.
| Height | 65” |
| Width | 52” |
| Depth | 46” |
| Turntable Diameter | 26” |
| Working Height | 32” |
| Working Load Limit | 500# |
| Solution Capacity | 70 Gal. |
| Standard Pump Motor Size | 3 HP |
| Standard Pump Capacity | 50 gpm @ 45 psi |
| Wash Nozzles | 9 |
| Turntable Drive Motor | 1/15 HP |
| Electric Heating Element(s) | 6 kw |
| Standard Electric Power Requirement | 230v. 1 ph. 42 amps |
| Weight in Pounds | 1250 |
Options | Part # |
|---|---|
| 3 HP-230 V 3 Phase Power | 112-10 |
| Pump Upgrade to 5 HP Single PH. | 112-11 |
| Pump Upgrade to 5 HP 3 PH. | 112-12 |
| 3 HP-460 V 3 Phase Power | 112-13 |
| 3 HP-575 V 3 Phaser Power | 112-14 |
| 5 HP-460 V 3 Phase Power | 112-15 |
| 5 HP-575 V 3 Phase Power | 112-16 |
| 7 Day Heat Timer | 112-20 |
| Auto Refill with Low Water Shutoff | 112-21 |
| Evaporation Cycle w/ Low Shut Off & Extra 6 kw Heat | 112-22 |
| Oil Skimmer w/ 60 Min Timer | 112-23 |
| Oil Skimmer w/ 7-day Timer | 112-24 |
| 15” Small Parts Basket | 112-25 |
| Thermometer | 112-26 |
Stainless Steel Wash Nozzles | 112-27 |
Intermediate or Mid Height Spray Bar | 112-28 |
Head Rack | 112-30 |
Options | Part # |
|---|---|
| Double Deck Table w/Spray Bar (Req. Pump Upgrade) | 112-31 |
| Transmission Rack | 112-32 |
| Gas Heat 60,000 BTU | 112-33 |
| 6” HD Casters | 112-35 |
| Low Water Auto Shut-off | 112-38 |
| Bag Filter System #6 x 18 Filter Housing | 112-40 |
| Wiring Upgrade | 112-50 |
| **Electronic Cycle Timer | 112-51 |
| **Digital Timers | 112-52 |
| Shop Air Blow Off | 112-53 |
| DEMA Injector Valve Water Line | 112-54 |
| Exhaust Blower | 112-55 |
| Turntable Jog Button | 112-56 |
| Increased Work Height Each 8” (Req. Pump Upgrade) | 112-60 |
| Extra 24” Basket | 1160 |
** These options require the wiring upgrade.
Door mounted swing out turntable gives unequaled access to the washer. PMW makes more efficient use of your space by allowing straight in loading with a fork lift or overhead hoist.
