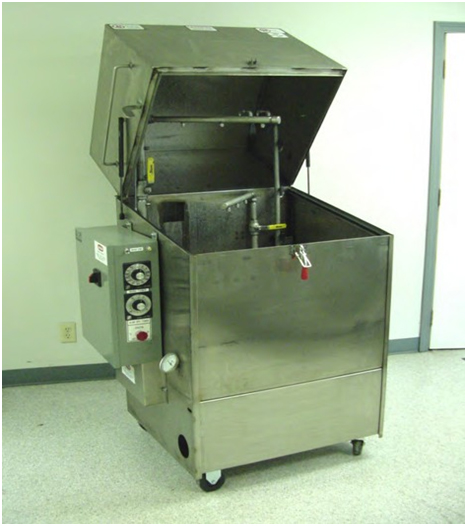

The model 110 is the perfect Power Spray Washer for the small shop as well as an inexpensive additional washer for the larger shops overflow work.
The model 110 will eliminate the use of a Solvent Tank.
The 110 rugged, heavy duty welded construction assures years of trouble-free service and includes key features resulting in performance benefits.
The model 110 provides a safe and efficient method to wash parts in both light commercial and industrial applications.
Safety: Hot water and biodegradable detergents are far safer to work with and environmentally safer to dispose of.
Compact-Portable Design: Approximately the size of a solvent tank and rolls on optional casters. Fully self-contained.
Fully Automatic: Timed cycle allows user to perform other tasks while parts are washed.
Cleaner Parts: Dirt, oil, and grease, naturally separate from water and the wash solution remains cleaner and does not redeposit on the parts.
Turntable Rotation: The turntable turns the parts to ensure complete exposure to wash solution therefore a cleaner part.
Capacity: 300 lbs.
Optional Stainless Steel Belt Oil Skimmer: The oil skimmer removes floating petroleum products.
Optional Working Hand Brush: A separate pump fed hand brush is provided for larger parts and special detailing.
| Height | 52” |
| Width | 40” |
| Depth | 34” |
| Turntable Diameter | 24” |
| Working Height | 18” |
| Working Load Limit | 300# |
| Solution Capacity | 25 Gal. |
| Standard Pump Motor Size | 2 HP |
| Standard Pump Capacity | 36 gpm @ 35 psi |
| Wash Nozzles | 9 |
| Turntable Drive | Water Jet |
| Electric Heating Element(s) | 4.5 kw |
| Electric Power Requirement | 230v. 1 ph. 32 amps |
| Weight in Pounds | 530 |
Option | Part # |
|---|---|
| 2 HP-230 V 3 Phase Power | 110-10 |
| 3 HP-230 V Single Phase Power | 110-11 |
| 3 HP-230 V 3 Phase Power | 110-12 |
| 2 HP-460 V 3 Phase Power | 110-13 |
| 2 HP-575 V 3 Phaser Power | 110-14 |
| 3 HP-460 V 3 Phase Power | 110-15 |
| 3 HP-575 V 3 Phase Power | 110-16 |
| Low Water Auto Shut-off | STANDARD |
| 7 Day Heat Timer | 110-20 |
| Auto Refill | 110-21 |
| Evaporation Cycle w/ Low Shut off | 110-22 |
| Oil Skimmer w/ 60 Min Timer | 110-23 |
| Oil Skimmer w/ 7-day Timer | 110-24 |
| 15” Small Parts Basket | 110-25 |
Thermometer | 110-26 |
Option | Part # |
|---|---|
| Stainless Steel Wash Nozzles | 110-27 |
| Lower Spray bar (only w/110-36) | 110-28 |
| Double Deck Turntable (requires 110-36) | 110-31 |
| Heavy Duty Casters | 110-35 |
| Deep Lid (Increases Wash Cabinet Height To 28”) | 110-36 |
| Solution Pump With Hand Brush | 110-37 |
| Bag Filter System #4 x 12 Filter Housing | 110-39 |
| Wiring Upgrade | 110-50 |
| **Electronic Cycle Timer | 110-51 |
| **Digital Timers | 110-52 |
| Shop Air Blow Off | 110-53 |
| DEMA Injector Valve Water Line | 110-54 |
** These options require the wiring upgrade.
PMW builds its entire parts washers from the ground up in their own modern facility. Though pump and motors are purchased, all major assemblies are designed and built by PMW. Because PMW is an integrated manufacturer, we can easily and quickly respond to your specific parts washer needs.
Integrated Manufacturing = Meet Your Needs
We design and produce unique cleaning systems that fulfill our customers' parts cleaning needs and provide a wide variety of manufacturing services.
